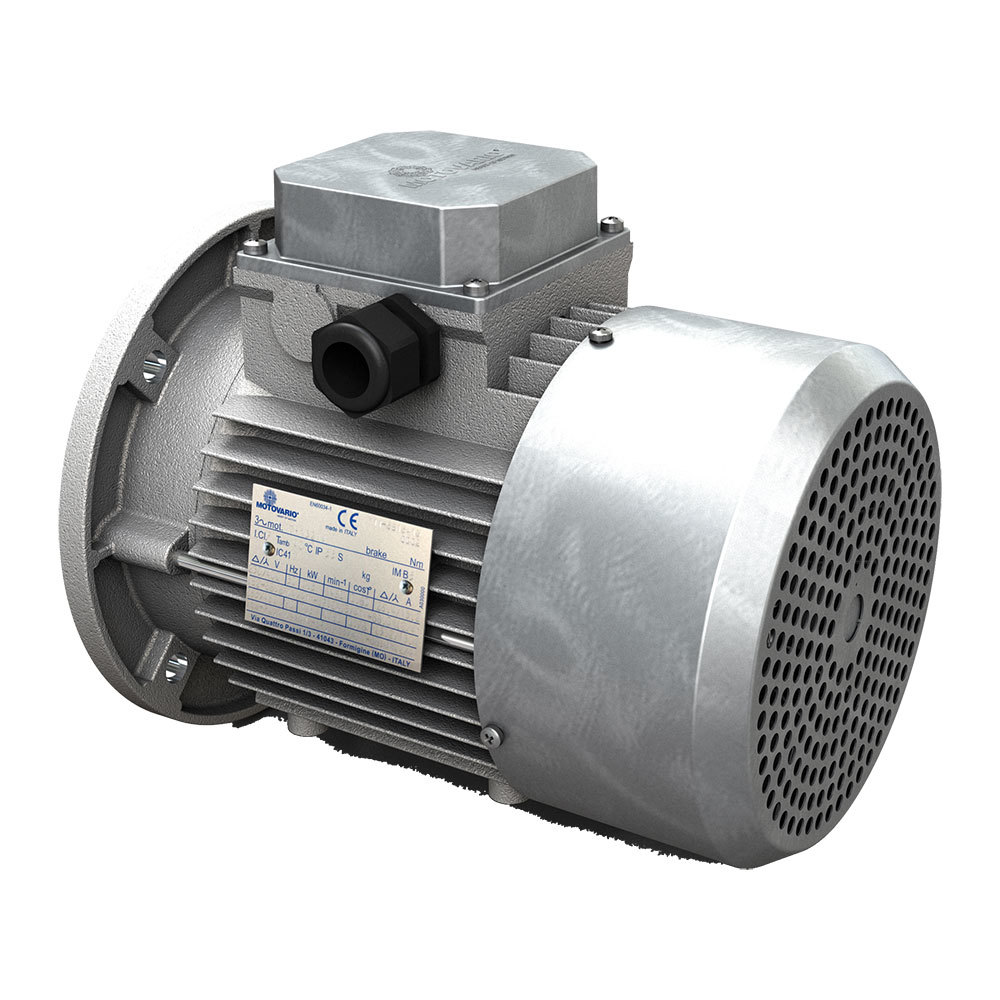

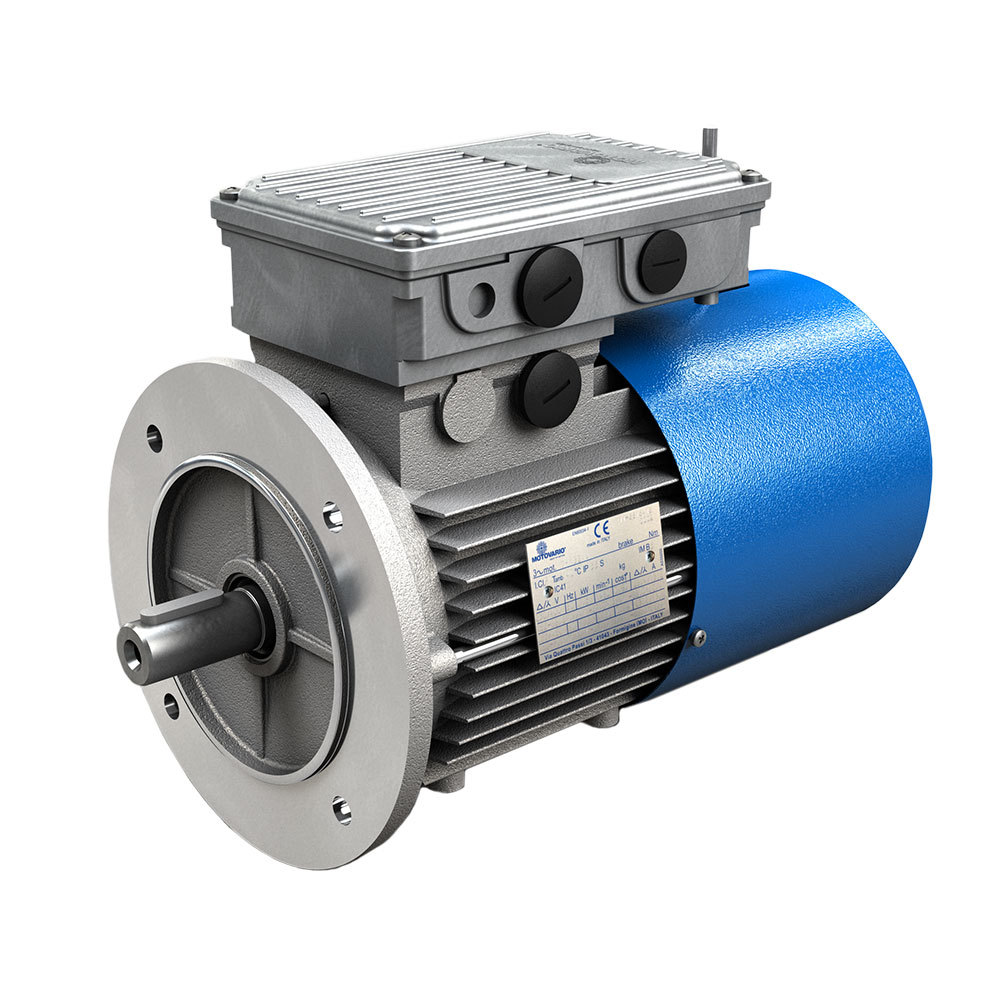

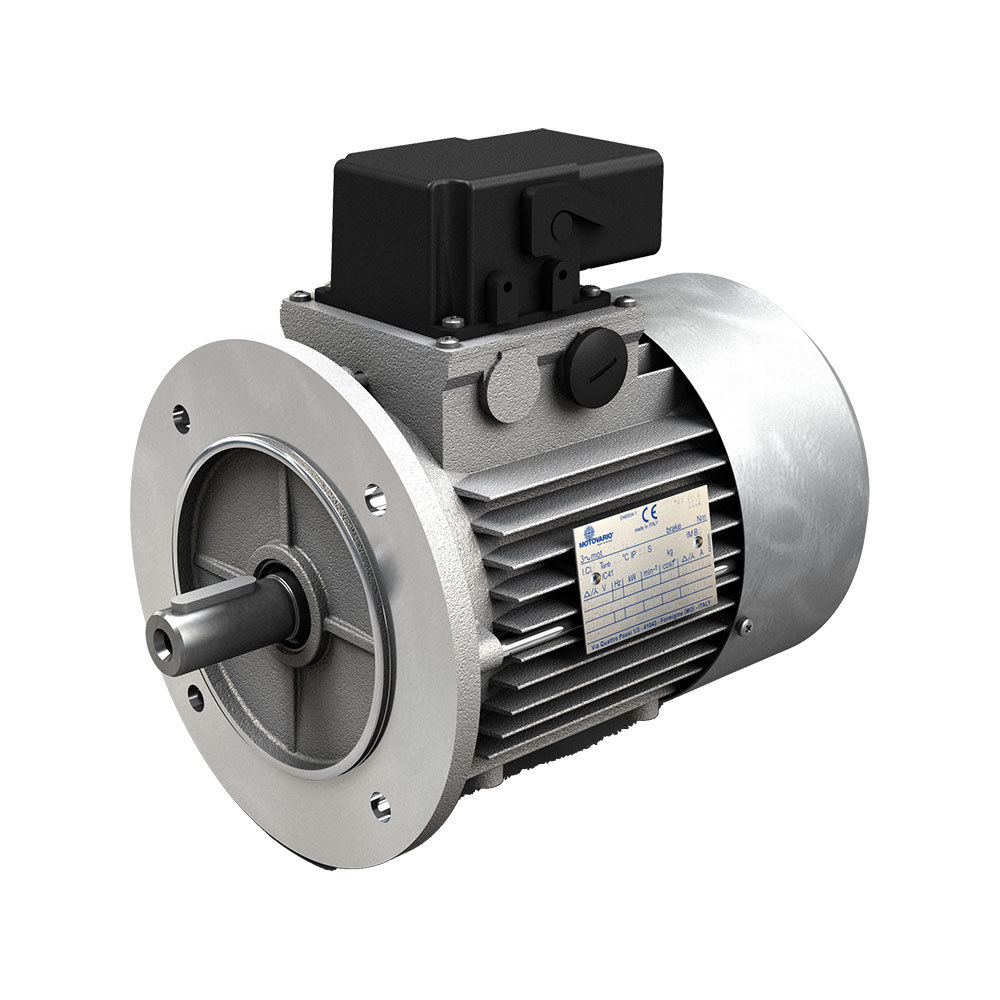

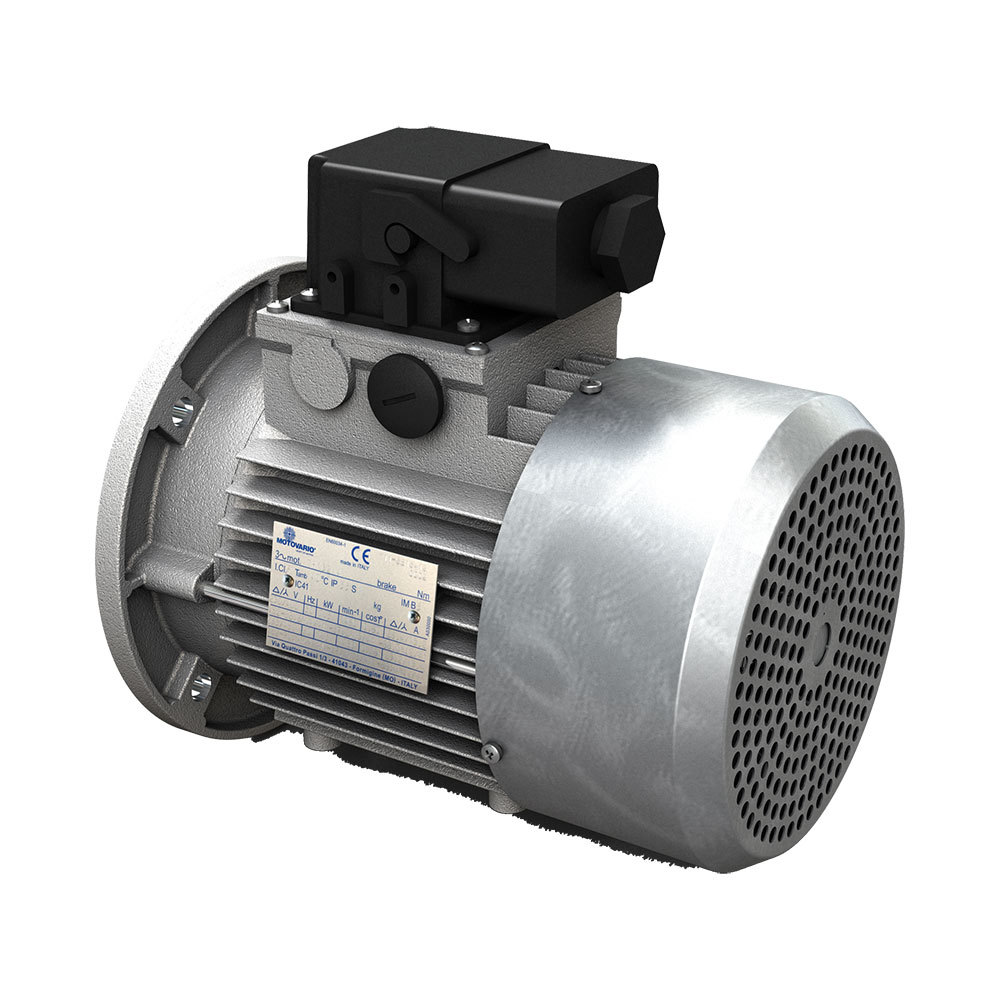

Double polarity three-phase motor/double polarity three-phase brake motor
D/DB
The three-phase double polarity motors are available as per IEC international standards, from size 063 to 132 in versions with B5 and B14 flanges and B3 feet. They are available with double polarity in 2-4, 2-8, 4-8 poles, with alternating or direct current brake.
Certifications Available for D: ATEX 3GD - UL/CSA/EAC/CE/UKCA
Certifications Available for DB: UL/CSA/EAC/CE/UKCA
Warranty: Two years from date of delivery.
Characteristics
- Motors designed in accordance with the requirements of IEC 34 family and relevant harmonized standards derived within the EEC
- External surface ventilation
- Aluminium or die-cast aluminium alloy cage rotor
- Insulation class F or H
- Degree of protection IP55
- Unified size and shaft heights from 63 to 132
- Power ratings and dimensions in accordance with IEC 72-1 from 0.09 to 11 kW

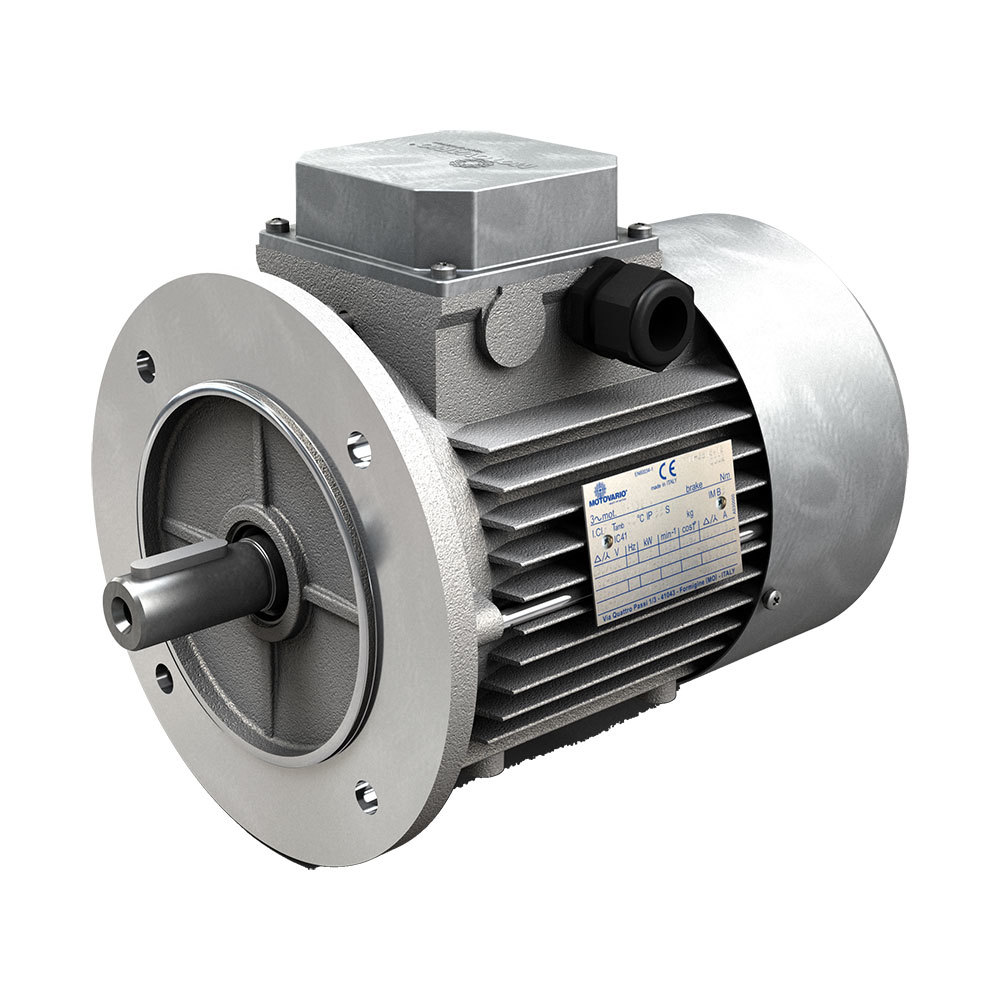

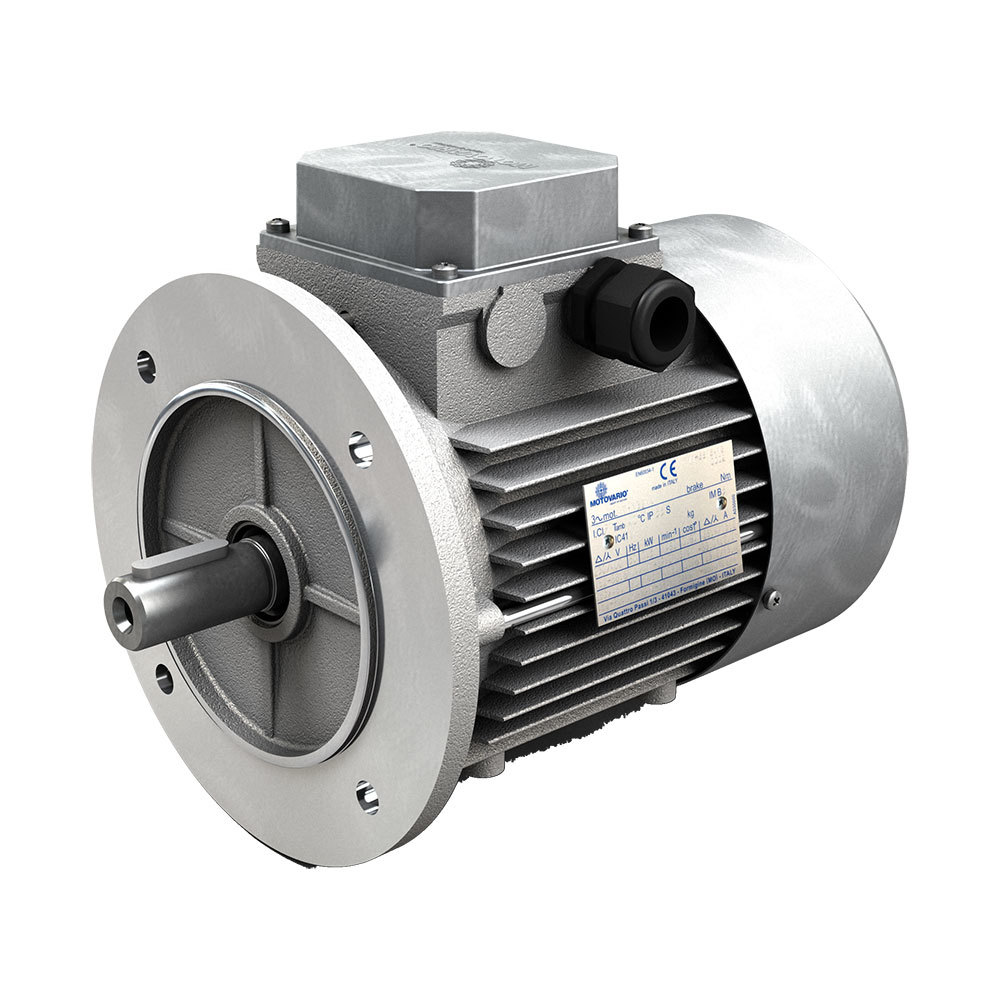

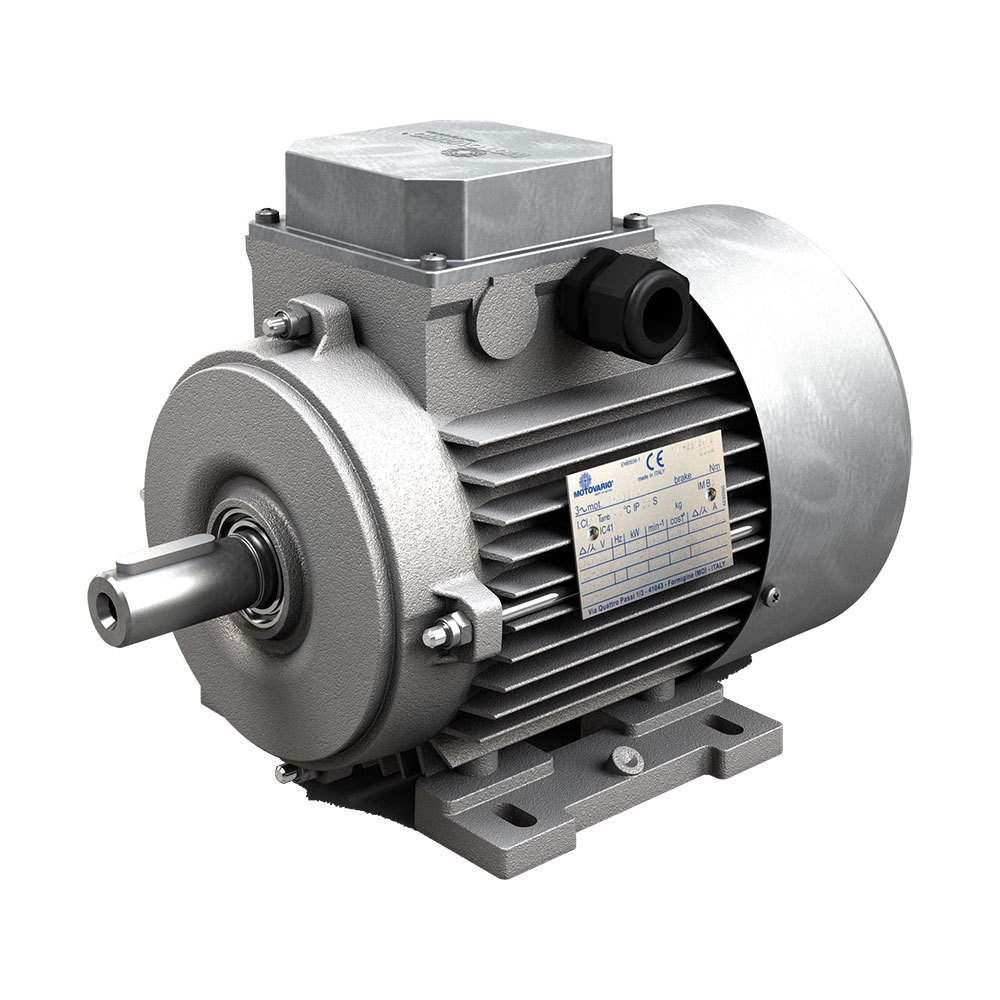

- Available with mounting feet B3 or B5 with flange or B14
- Polarity: 2/4, 2/8, 4/8

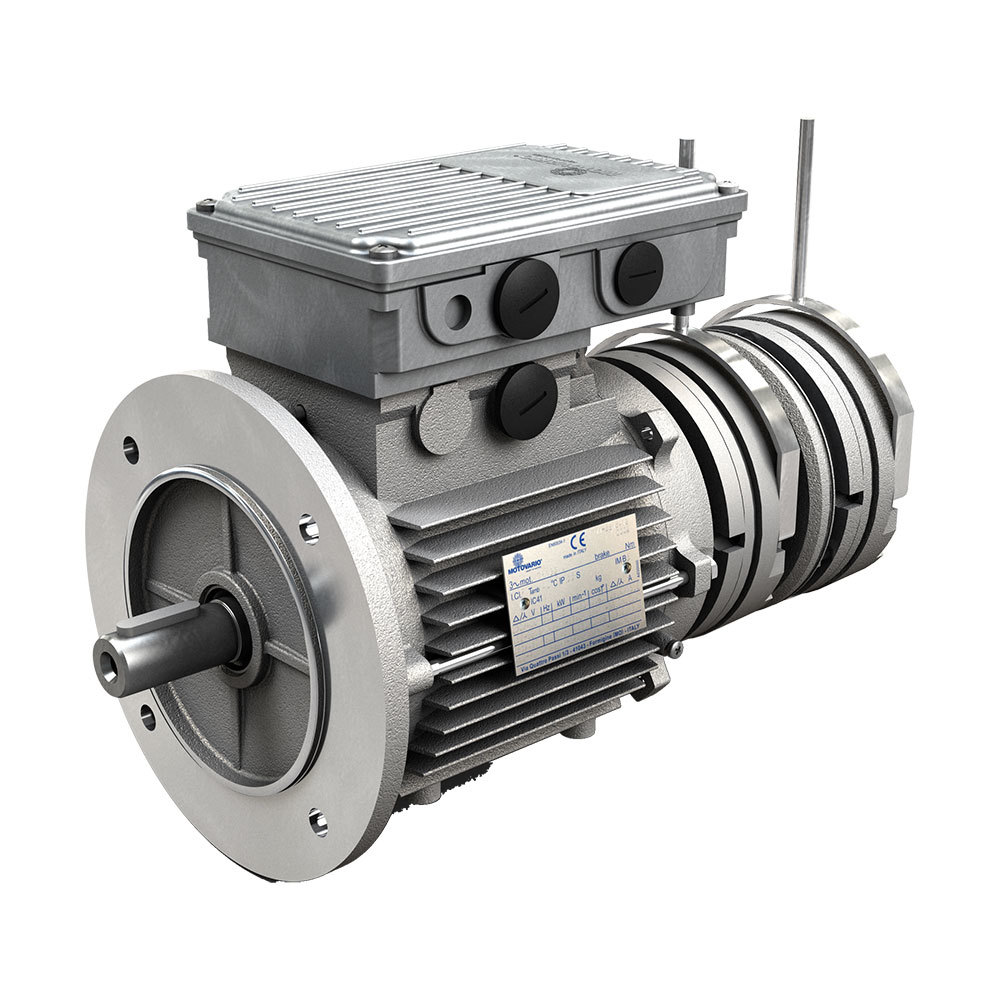

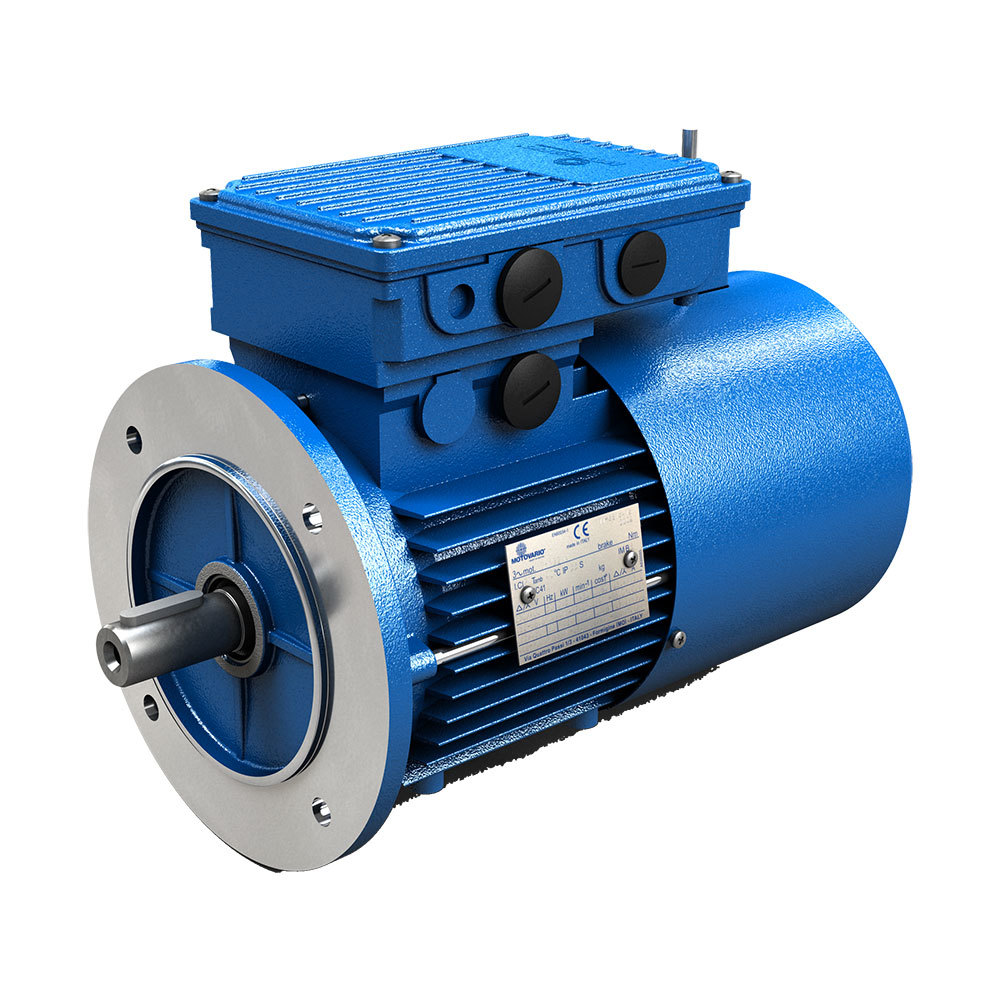

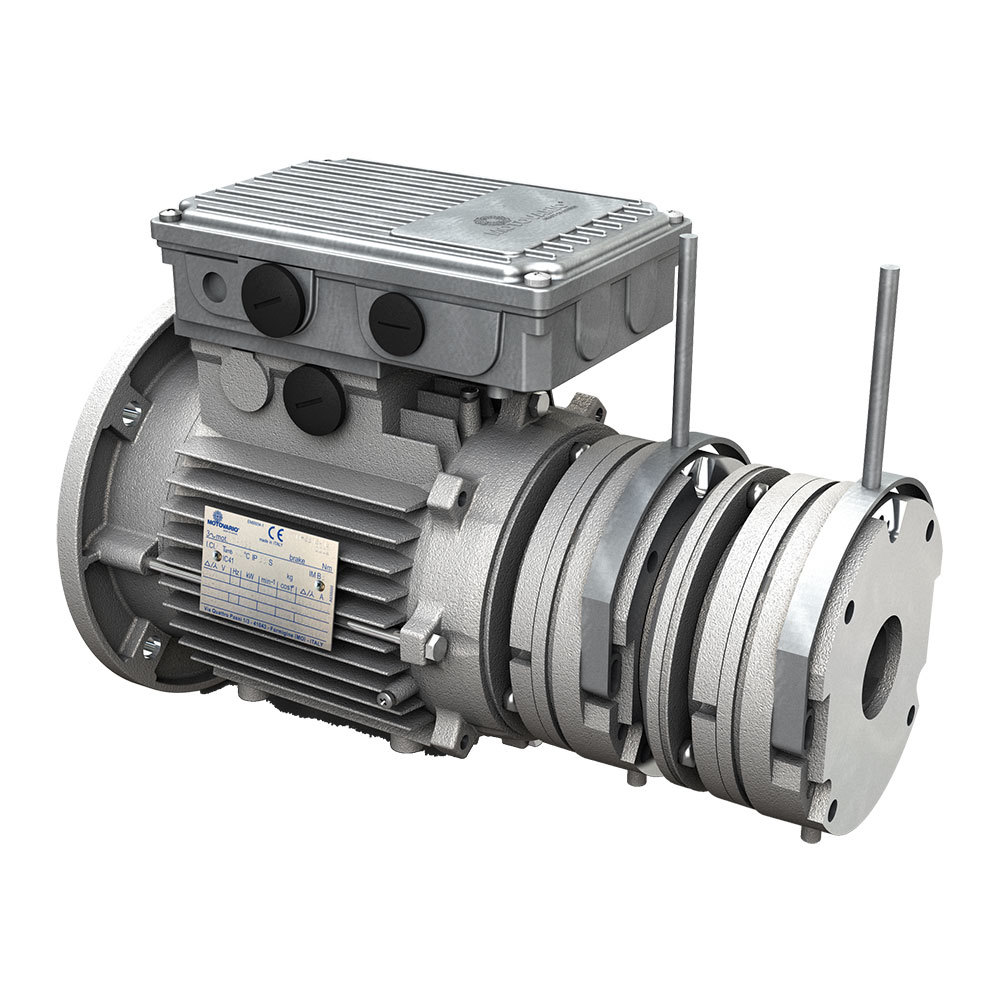

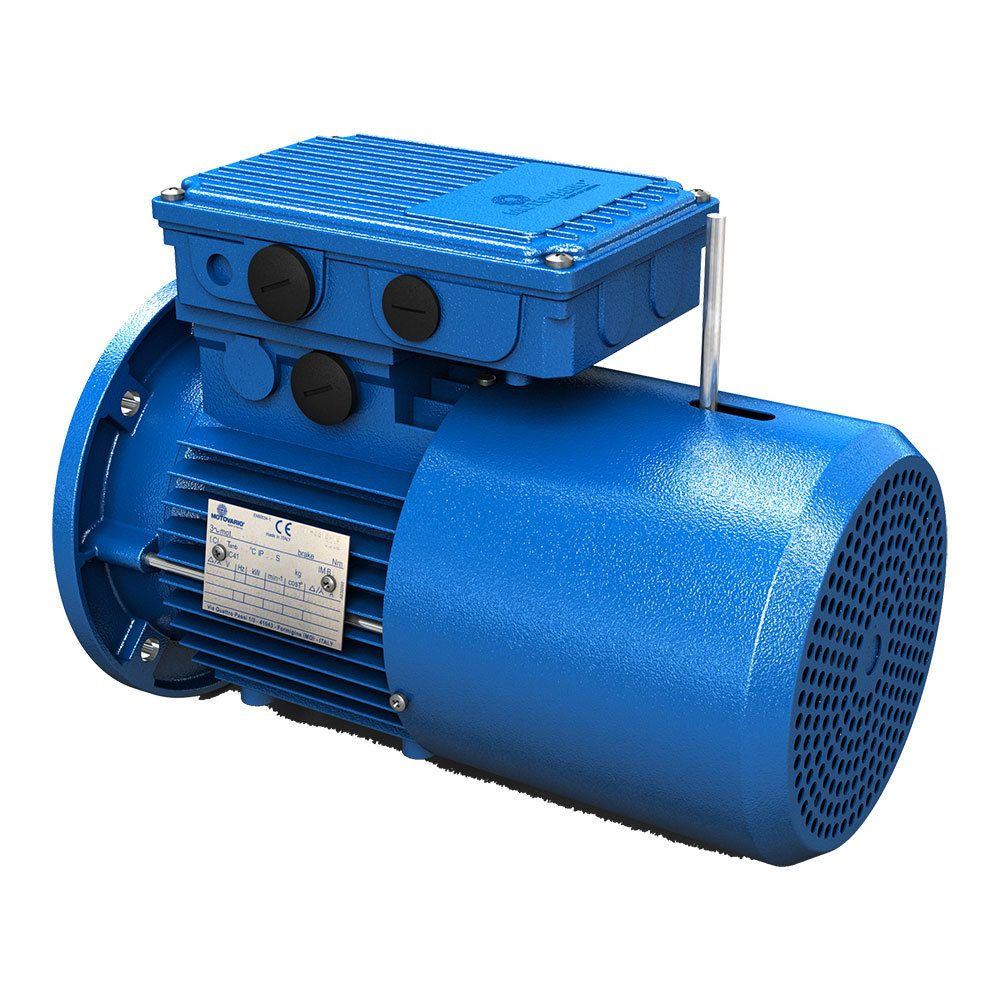

- MS AC brake and FM DC brake
- Over-temperature compatible with Class B
- Ambient temperature + 40°C
- Altitude < 1.000 m above sea level
-
