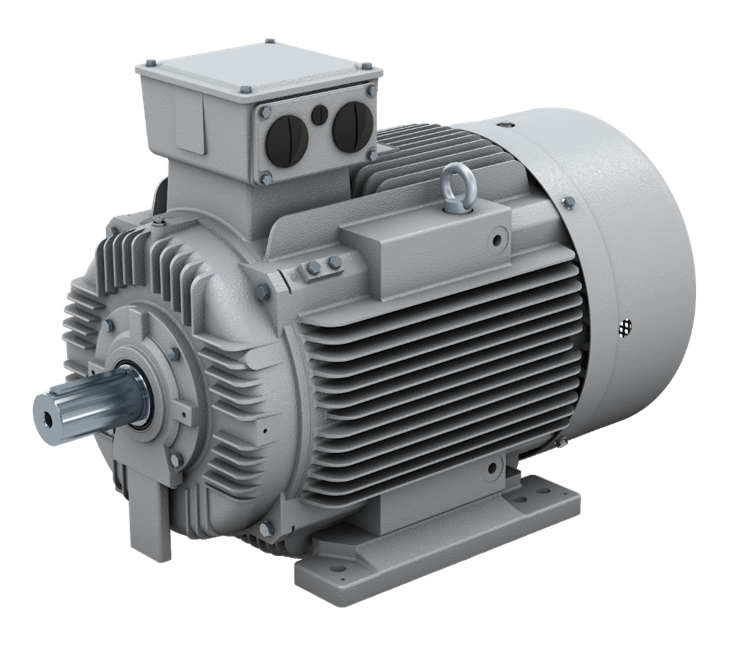

IEC cast iron motors
AESV-AESU
TECO IE3 Cast Iron squirrel cage induction motors are designed, manufactured and tested to meet the latest European and International Standards. The high quality and reliable construction, are ideally suit- able for all industrial markets
Output range 0,75kw to 400KW with frame size 80 to 355. Under NEMA MG-1 design, the motor design meets NEMA Premium in output range 1HP to 420HP* with metric frame size 80 to 315
*Output HP in NEMA Premium efficiency, please consult: marketing@motovario.it
Characteristics
- Design IEC60034
- Efficiency IE3 according to IEC/EN 60034-30-1
- Efficiency NEMA Premium according to NEMA MG-1
- 230V up to 690V 50/60HZ
- Frame size 80 to 355
- Detachable feet design 80 to 280
- IP55 standard
- Double lip seals on both sides
- Winding insulation F/B
- 3 off PTC with clamping type connection
- C3 painting with colour RAL7032
- Inverter ready according IEC60034-17
- SKF, NSK or FAG bearing
- IC411
- Grade 8.8 bolt
-
